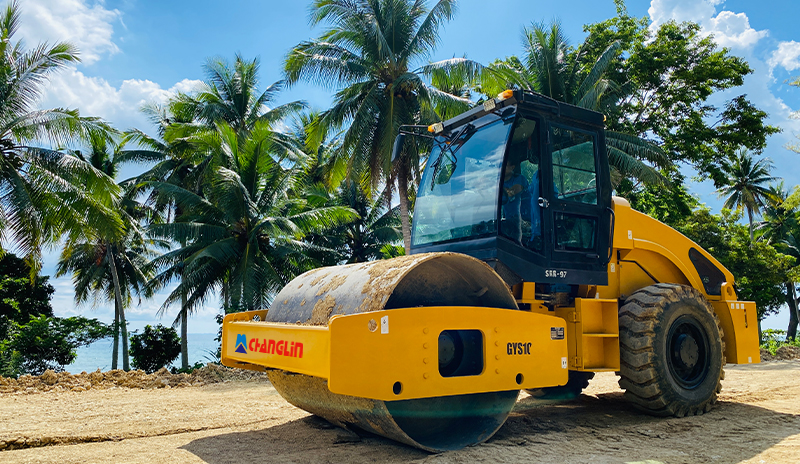

Road Roller GYS10J(2)

Operating Weight : 10000kg
Power : 82kw@2000 r/min
Overall Dimension : 5570x2180x3010mm
Max. Paving Width : 2100mm
Working Speed : 2.0/4.2/8.7km/h
Centrifugal Force : 225/105 kN
Compaction Width : 1980 mm
Vibration Frequency & Amplitude : 30 Hz / 1.6/0.8 mm

Get a Quote

Data download

Get a Quote

Data download

Mechanical Drive -- multi-step traveling speed.
Highly Efficient Compaction -- Hydraulic vibration, single-frequency double amplitude, electronically controlled delayed vibration, large excitation force.
Light and Flexible Operation -- Hydraulic steering, articulated frame.
Easy-control Components -- Equipped with special gear box for road rollers with synchronizer, high transmission torque and easy to shift.
Safe and Reliable Design -- Air-assisted hydraulic caliper disk running brake, internal drum mechanical parking brake

Parameter

Operating weight	10000 kg
Vibratory drum diameter	1430 mm
Compaction width	1980 mm
Static line pressure	240 N/cm
Min. ground clearance	380 mm
Wheel base	2900 mm
Min.turning radius	5800 mm
Gradeability	30%
Vibratory amplitude	1.6/0.8 mm
Vibratory frequency	30Hz
Centrifugal force	225/105 kN
Traveling speed
（Forward）	Ⅰ/Ⅱ/Ⅲ 2.0/4.2/8.7km/h
（Reverse）	2.0/4.2km/h
Tyre type	17.5-25
Engine model	WP4G110E221/WP4.1G102E301
Rated power	82kW/74.9kW
Rated speed	2000 r/min / 2400 r/min
Dimension	5570×2180×3010

Product Details

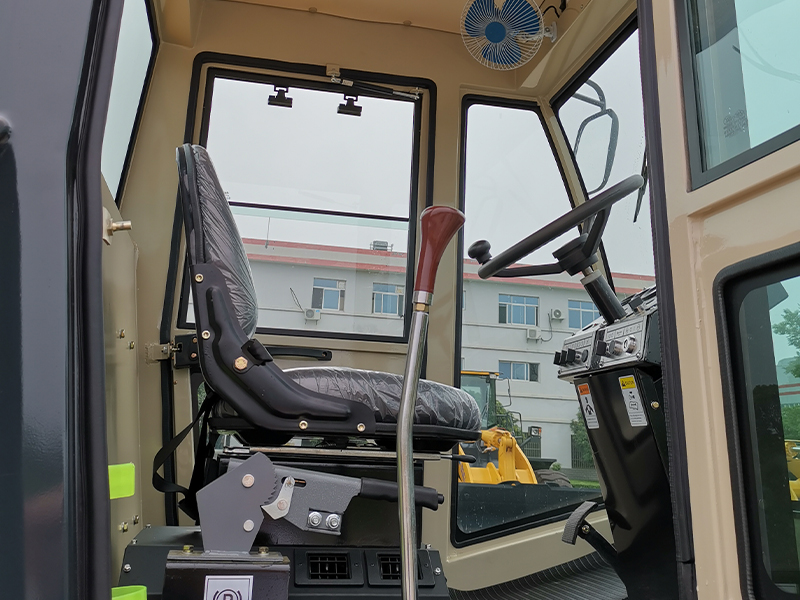

COMFORTABLE CAB

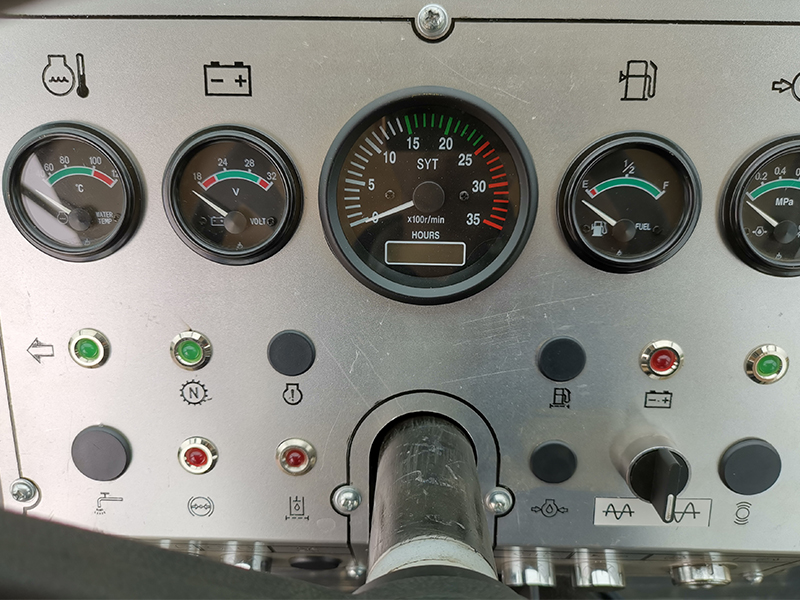

DASHBOARD

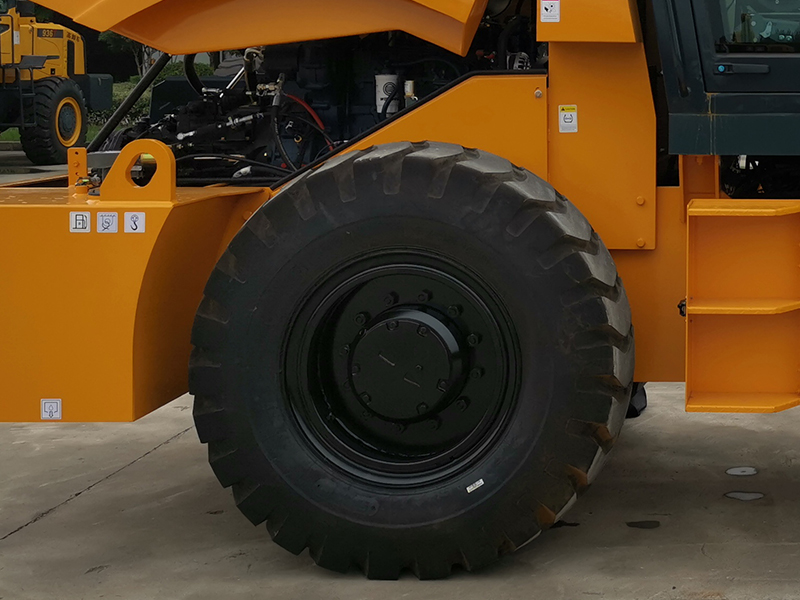

TYRE

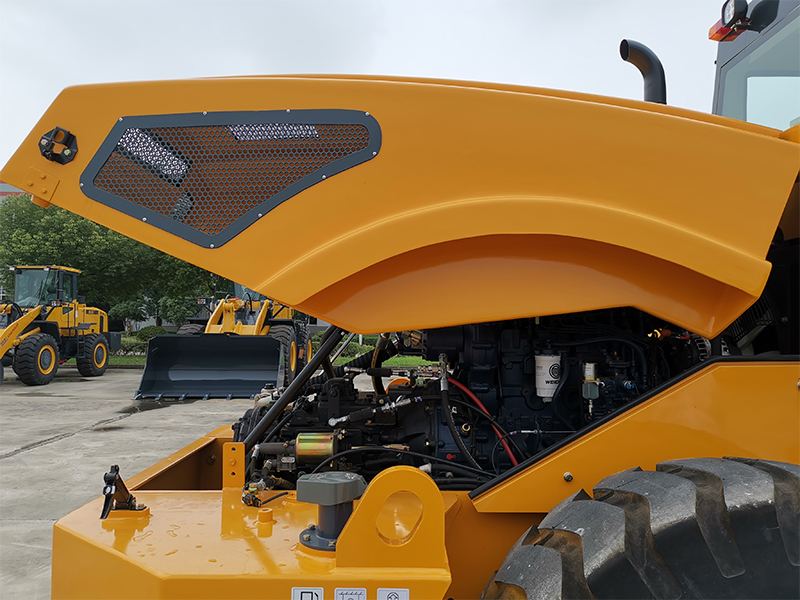

ENGINE

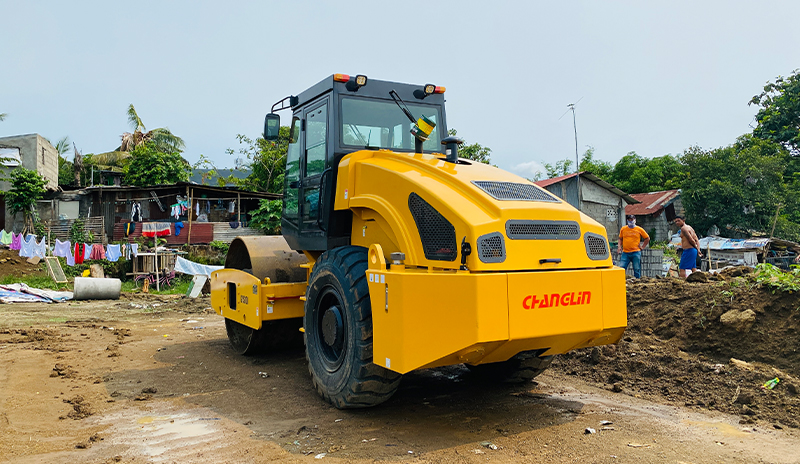

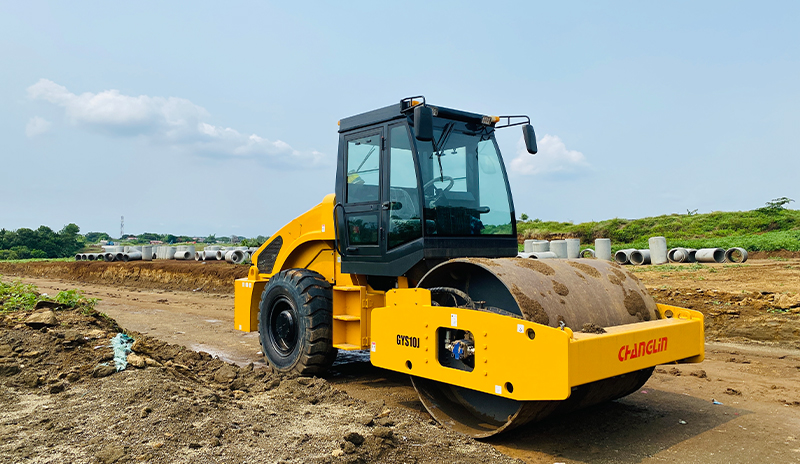

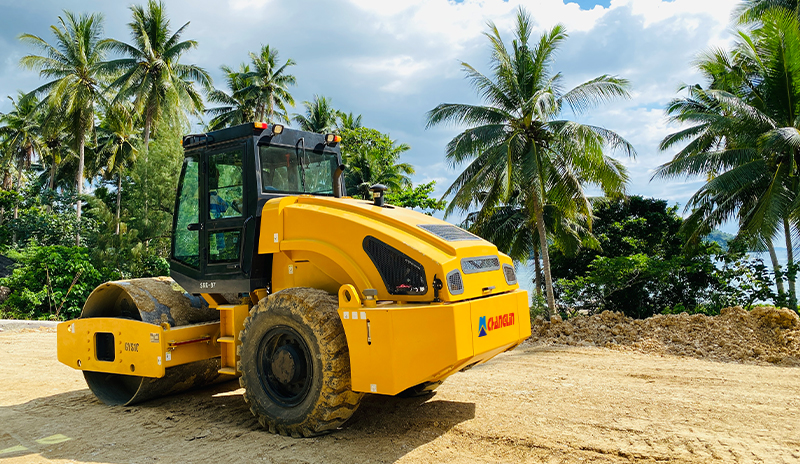

Usage Scenarios

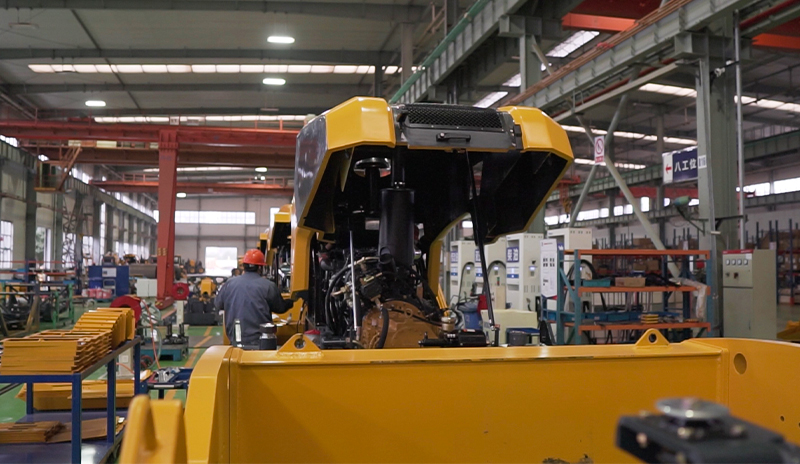

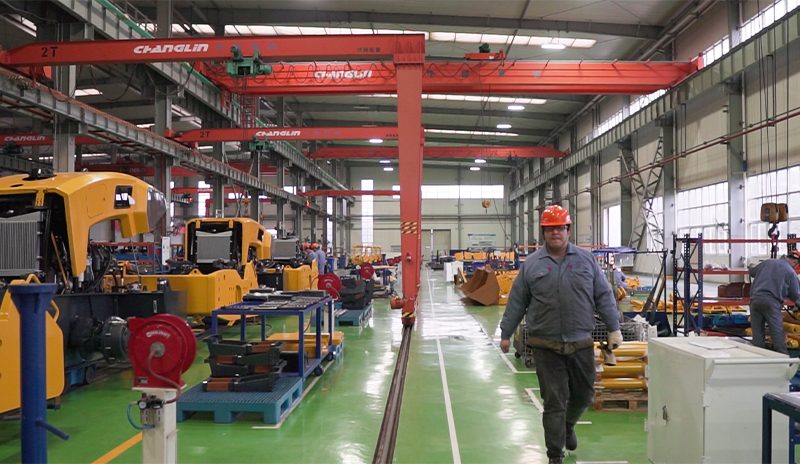

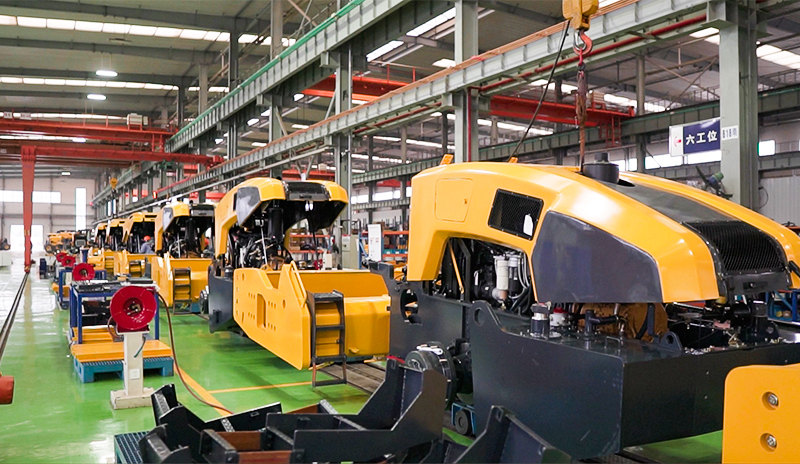

Assembly Line

List of exhibitions attended

BAUMA CHINA 2019
BICES CHINA 2019
BAUMA CHINA 2024
CANTON FAIR 2024

ABOUT US

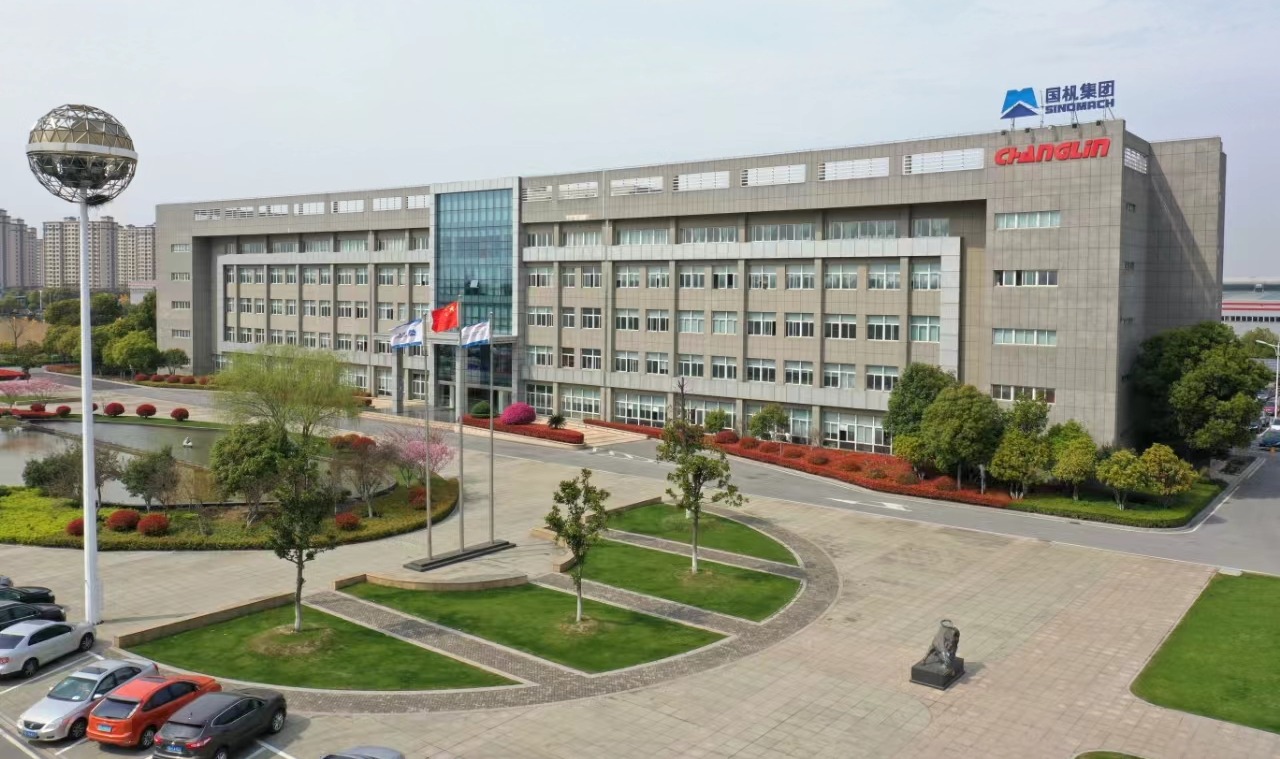

Powerful factory:Our affiliated factory, SINOMACH Changlin Co., Ltd., has over 60 years of R&D and manufacturing experience.
