Motor Grader PY220H(2)

  • Operating Weight : 16100 kg
  • Power : 162 kW/160 kW@2200(rpm)
  • Overall Dimension : 9250x2600x3420mm

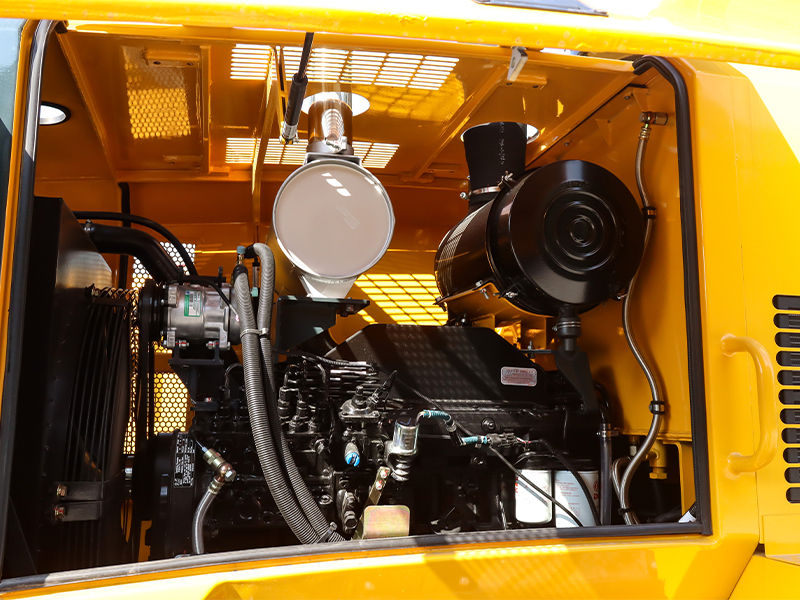

• Powerful engine and flexible gearbox - Equipped with Cummins6CTA8.3-C215 engine. Sing-handle electro-hydraulic controlled power-shift T/M, 6forward &3reverse shifts makes operation easy and convenient

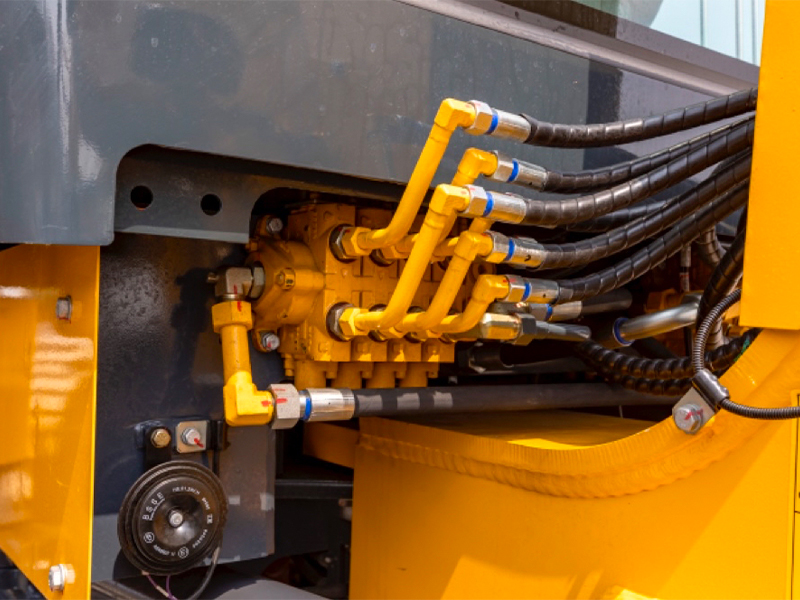

• Stable & efficient hydraulic system-Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful tractionIdeal axel load allocation provides excellent stability while cutting hard surface.Serviceable, efficient hydraulic system enables every part to be fully used.


• Wide range of usage scenarios - Box-typed frame and advanced T/M enable it to complete heavy-duty work. A wide working range is accomplished through flexible blade suspension system and articulated frame.

Parameter

Basic specification
Engine model Cummins
Rated power 160/162kW 2200rpm
Dimension(L×W×H) 9250x2600x3420mm
Operating weight(Standard) 16100kg
Performance specification
Travelling speed ,forward 6.86/11.78/15.51/26.17/32.59/50.86
Travelling speed ,reverse 6.86/15.51/32.59
Tractive force(f=0.75) 82.8KN
Operating specification
Max. steering angle of front wheels 49°
Max. lean angle of front wheels 17°
Max. oscillation angle of front axle 16°
Max. oscillation angle of balance box 13°
Frame articulation angle 26°
Min. turning radius using articulation 7.4m

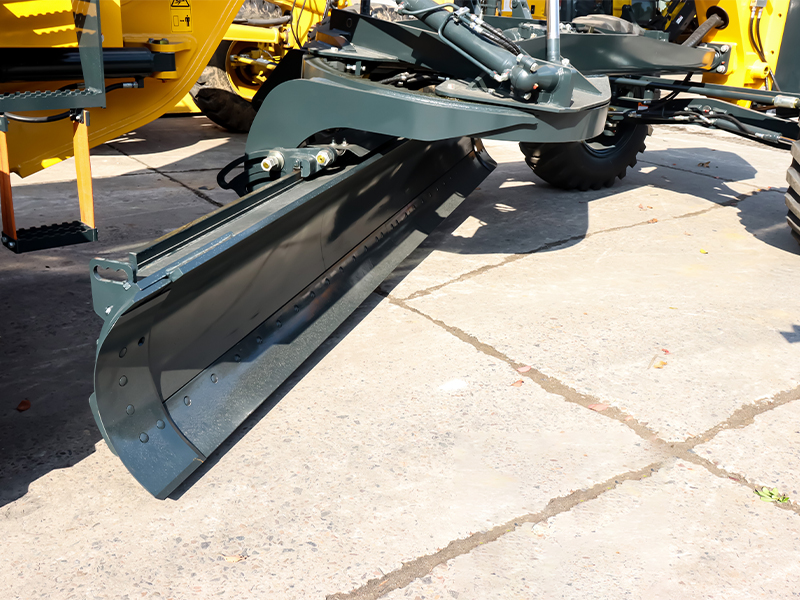

Blade
Maximum lift above ground 450mm
Maximum grading depth 535mm
Maximum blade position angle 90°
Blade cutting angle 29°~77°
Circle reversing rotation 360°
Moldboard width × height 4320x580mm

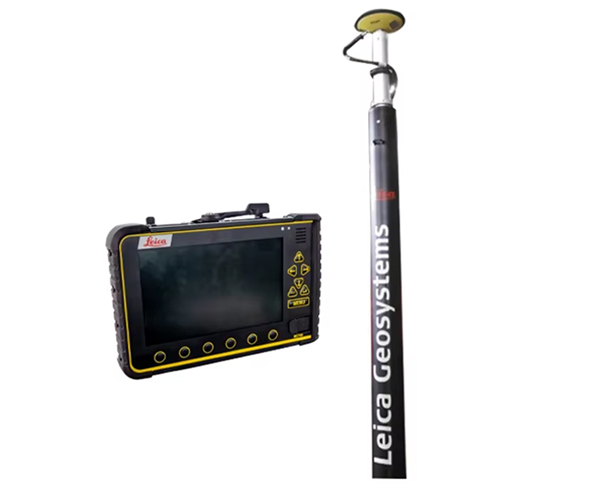

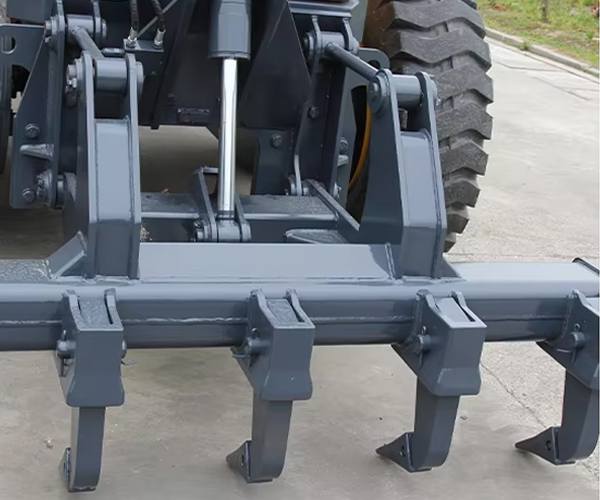

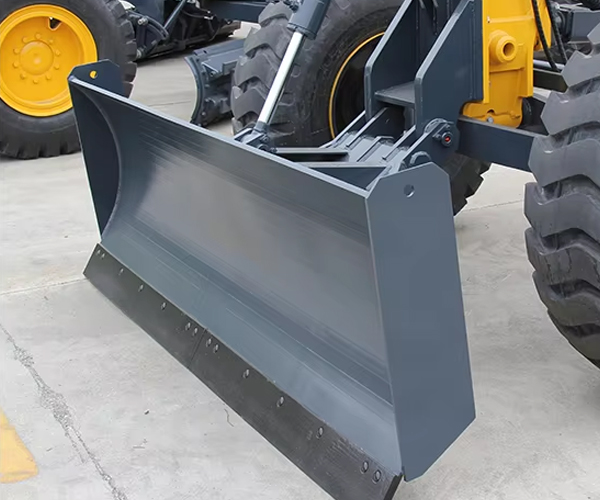

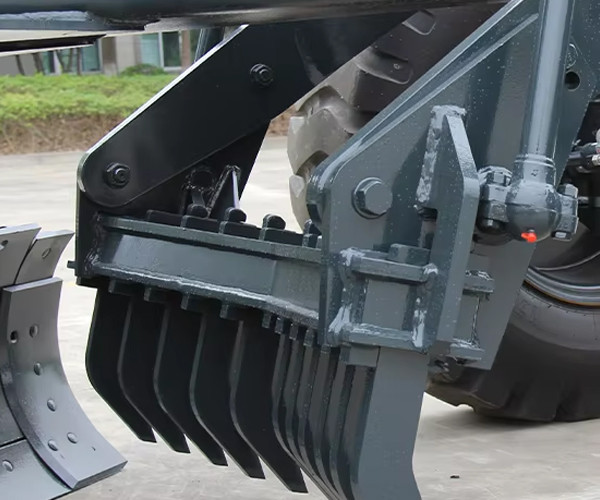

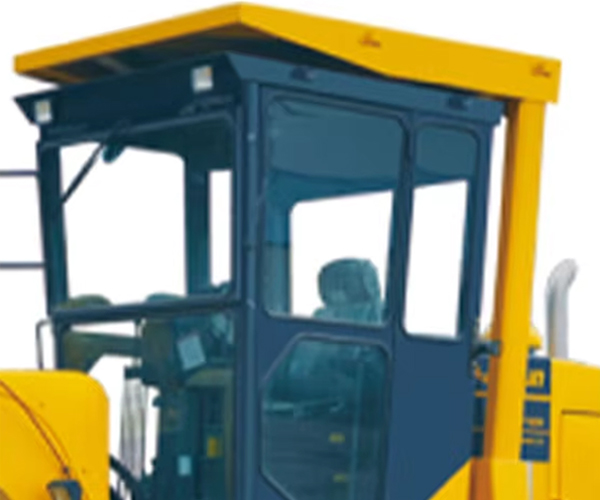

       Optional Accessories ↓

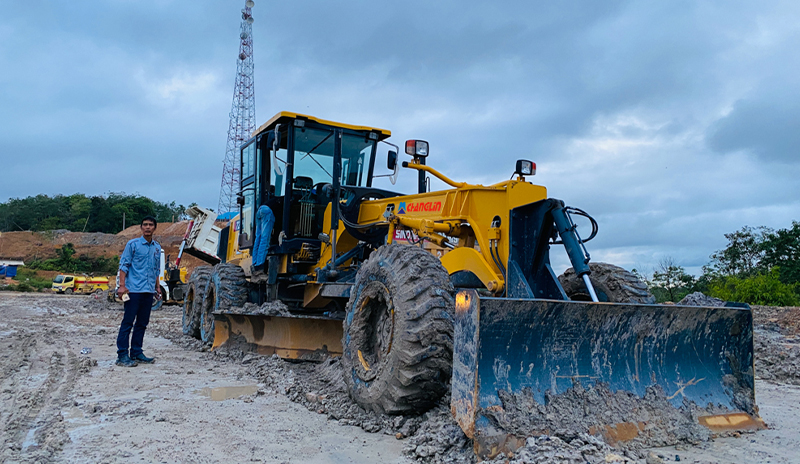

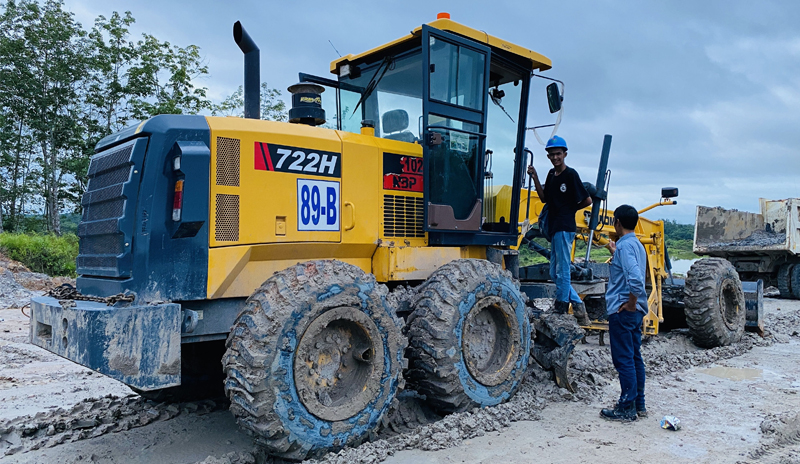

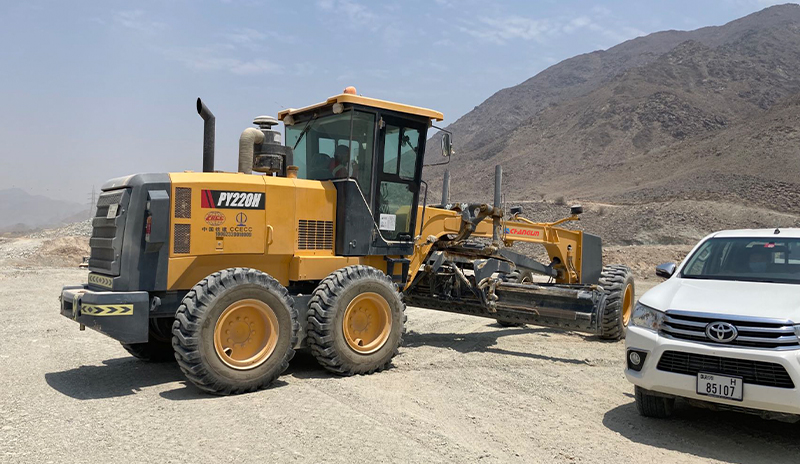

       Projiect Cases

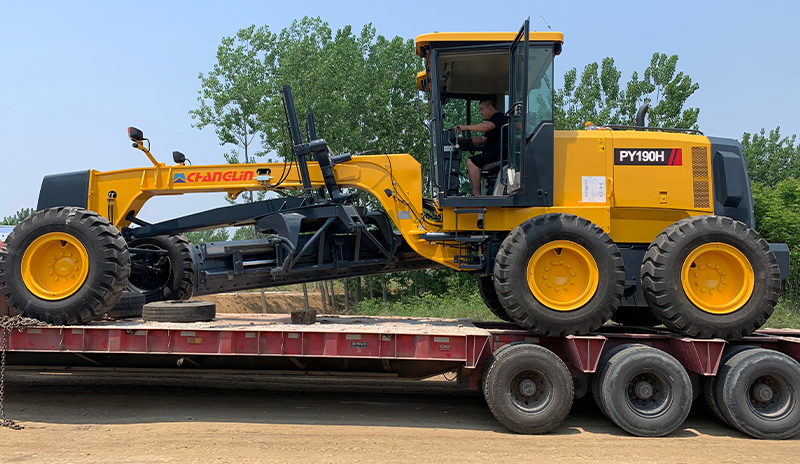

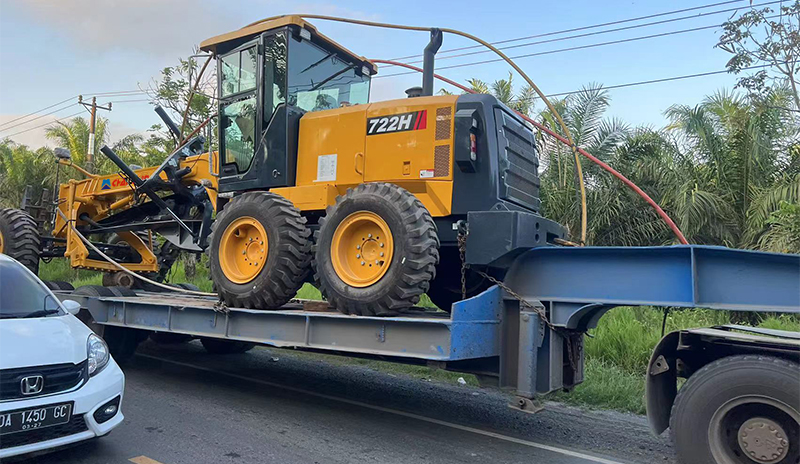

      Packing &Shipping



      List of exhibitions attended





Powerful factory:Our affiliated factory, SINOMACH Changlin Co., Ltd., has over 60 years of R&D and manufacturing experience.

Global Brand Coverage:Our products have been sold to over 100 countries and regions, with a strong presence  through agents in more than 50 countries and regions.

Big Brand Collaboration:As an international company, we are dedicated to becoming a world-class manufacturer in the  field of engineering equipment and related heavy industry.

R&D technical capacity:It has earned prestigious titles including National Technology Center, Postdoctoral  Research Workstation, and National Quality Management Award.

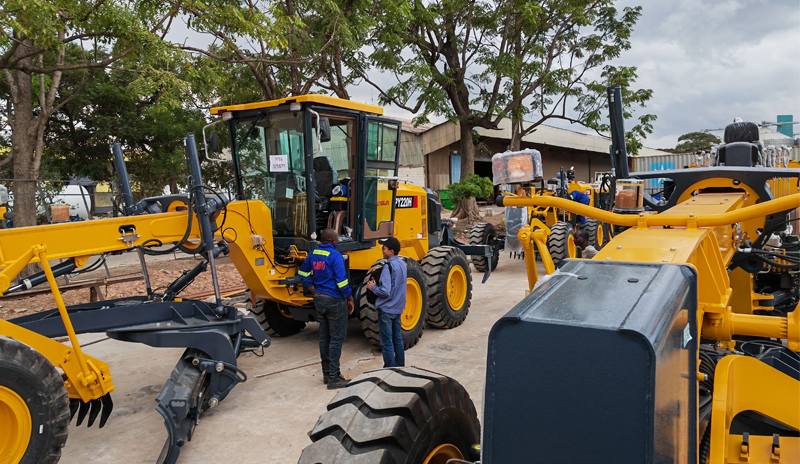

Application Cases
